TP-Link (TL-SG105PP-M2) 5-Port 2.5G Desktop Switch with 4-Port PoE++ - 25 Gbps / LAN

Product image 1
1 / 8

TP-Link (TL-SG105PP-M2) 5-Port 2.5G Desktop Switch with 4-Port PoE++ - 25 Gbps / LAN

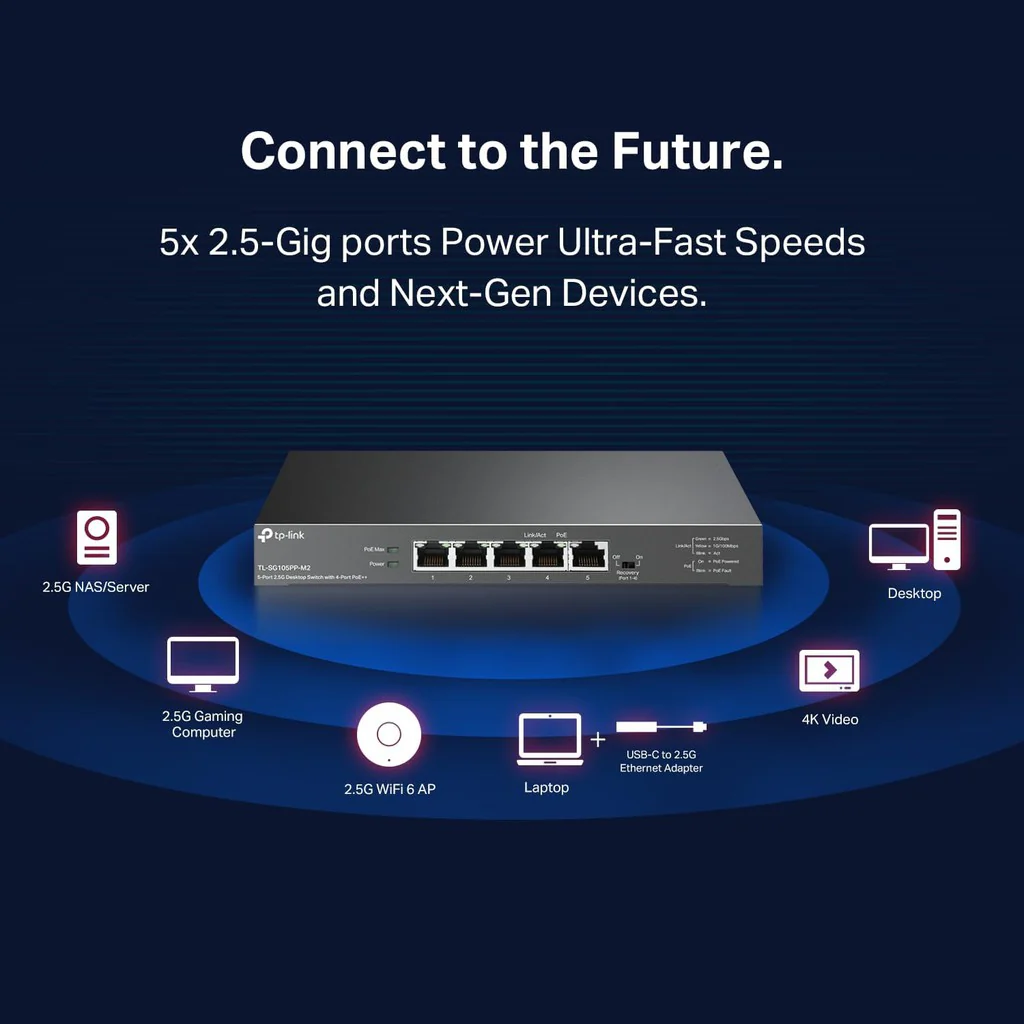

This Switch Delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.

Introducing the TP-Link TL-SG105PP-M2, a game-changing 5-Port 2.5G Desktop Switch that's engineered to elevate your network's performance and efficiency. With five versatile ports offering 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps speeds, this switch delivers high-speed and reliable connections for all your devices.

What sets the TL-SG105PP-M2 apart is its Power over Ethernet (PoE) prowess. Boasting four PoE++ ports, this switch effortlessly transfers both data and power through a single cable. It's fully compatible with IEEE 802.3af/at/bt type3 compliant PDs, making it an excellent choice for a wide range of devices, from IP cameras to access points.

Key Features

  • 5Ă— 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • With four PoE++ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt type3 compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic

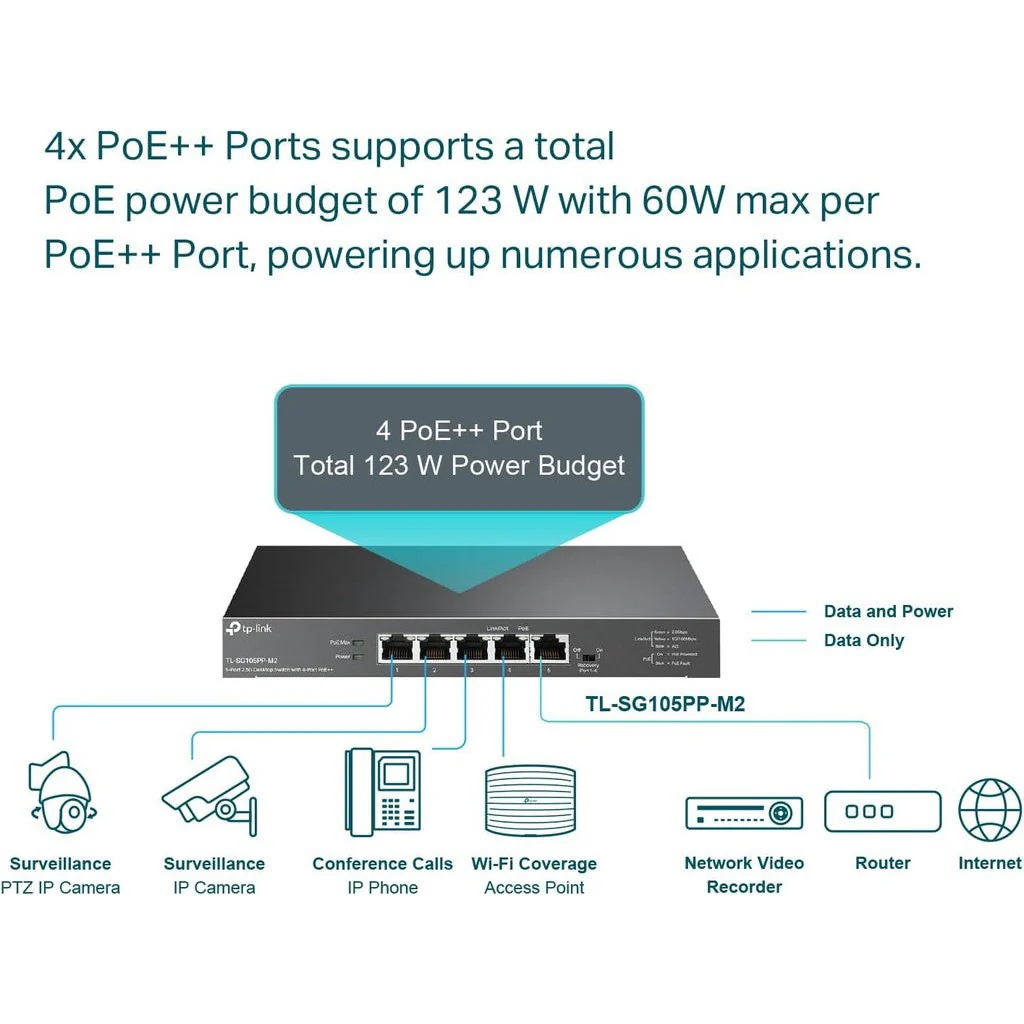

  • Supports PoE Power up to 60 W for each PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports*

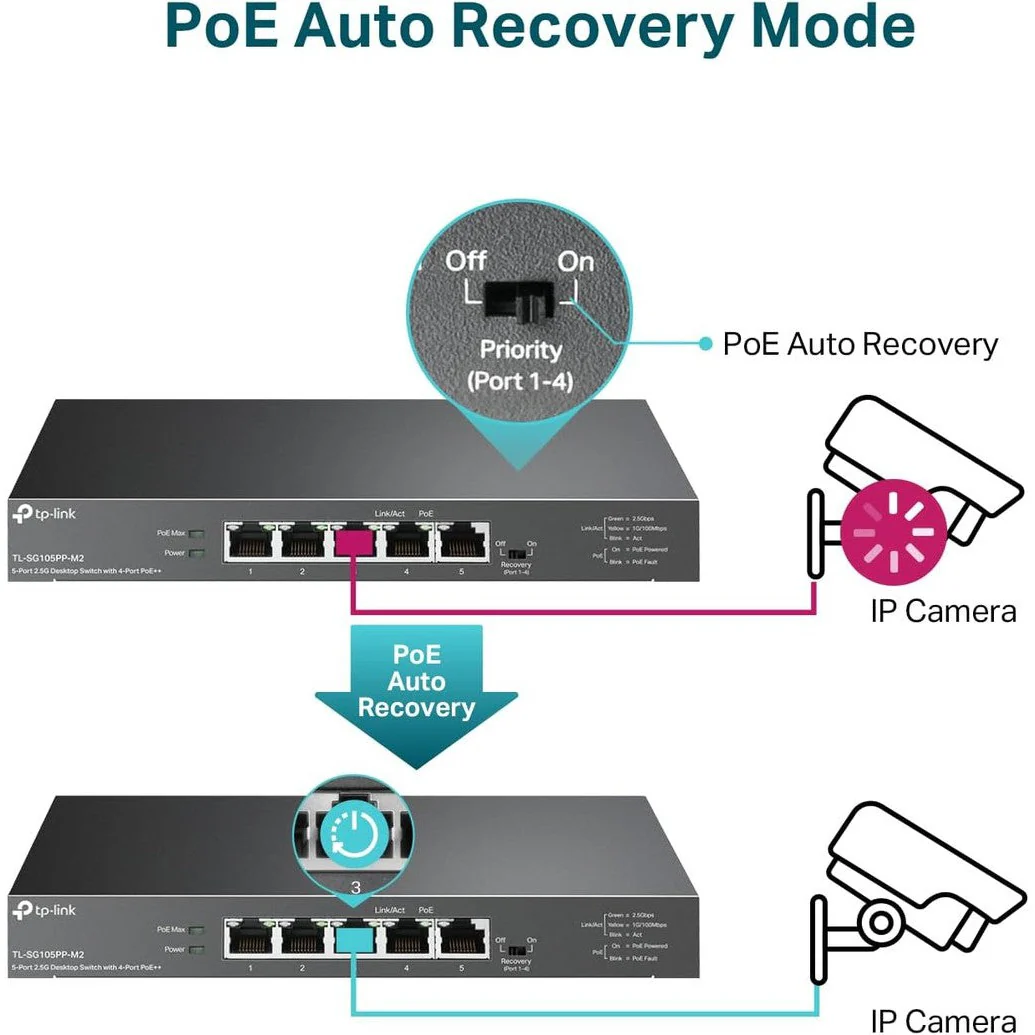

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

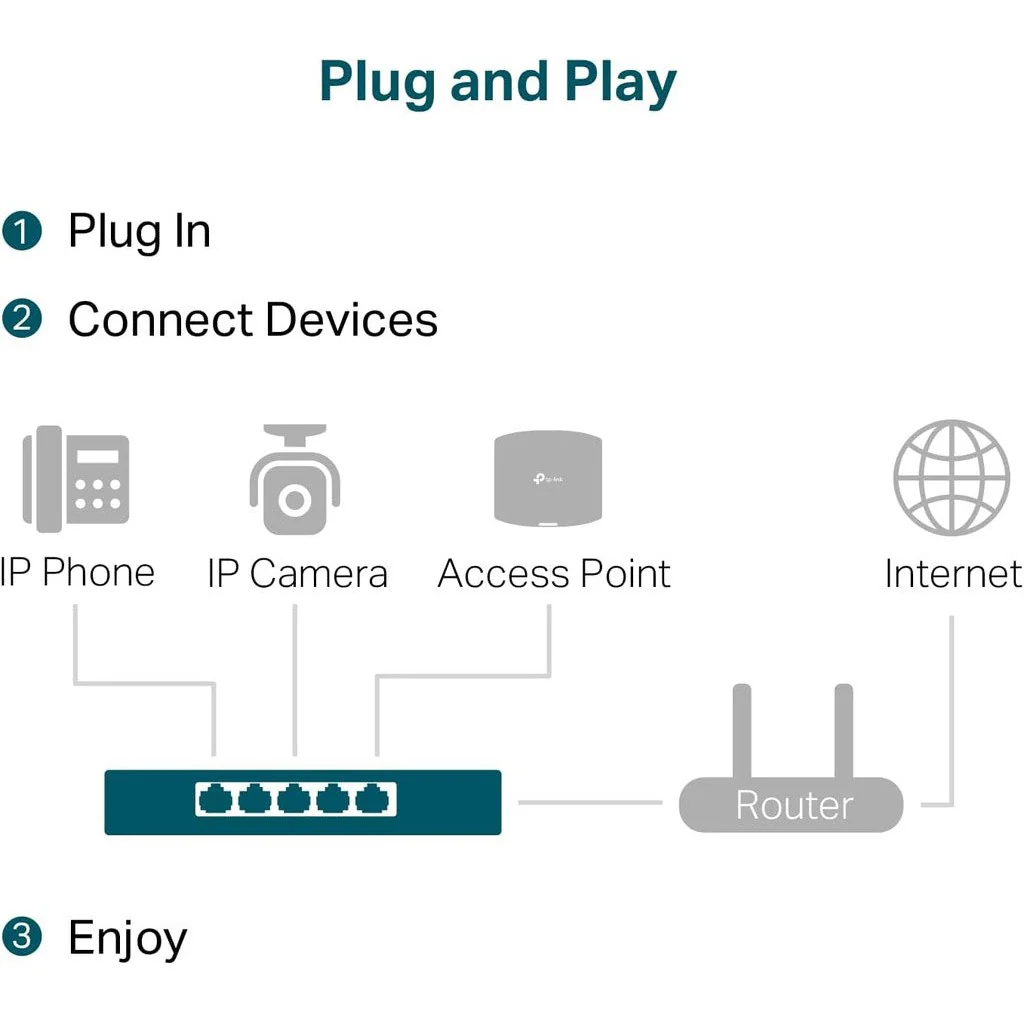

  • Plug and Play, no configuration and installation required

Specifications

Brand TP-Link
Model TL-SG105PP-M2
Device Type Desktop Switch
Interface 5Ă— 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
PoE Ports (RJ45) Standard: 802.3 af/at/bt type3 compliant, PoE++ Ports: Ports 1–4, Power Supply: 123 W
Network Media 10BASE-T: UTP category 3, 4,  Cable, 100BASE-TX: UTP category 5, 5e Cable, 1000BASE-T: UTP category 5, 5e, 6 or Above Cable
Switching Capacity 25Gbps
Packet Forwarding Rate 18.6 Mpps
Mac Address Table 4K
Advanced Features Compatible With IEEE 802.3af/at/bt type3 Compliant PDs, Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping, PoE Auto Recovery (Ports 1-4)
Transfer Method Store-and-Forward

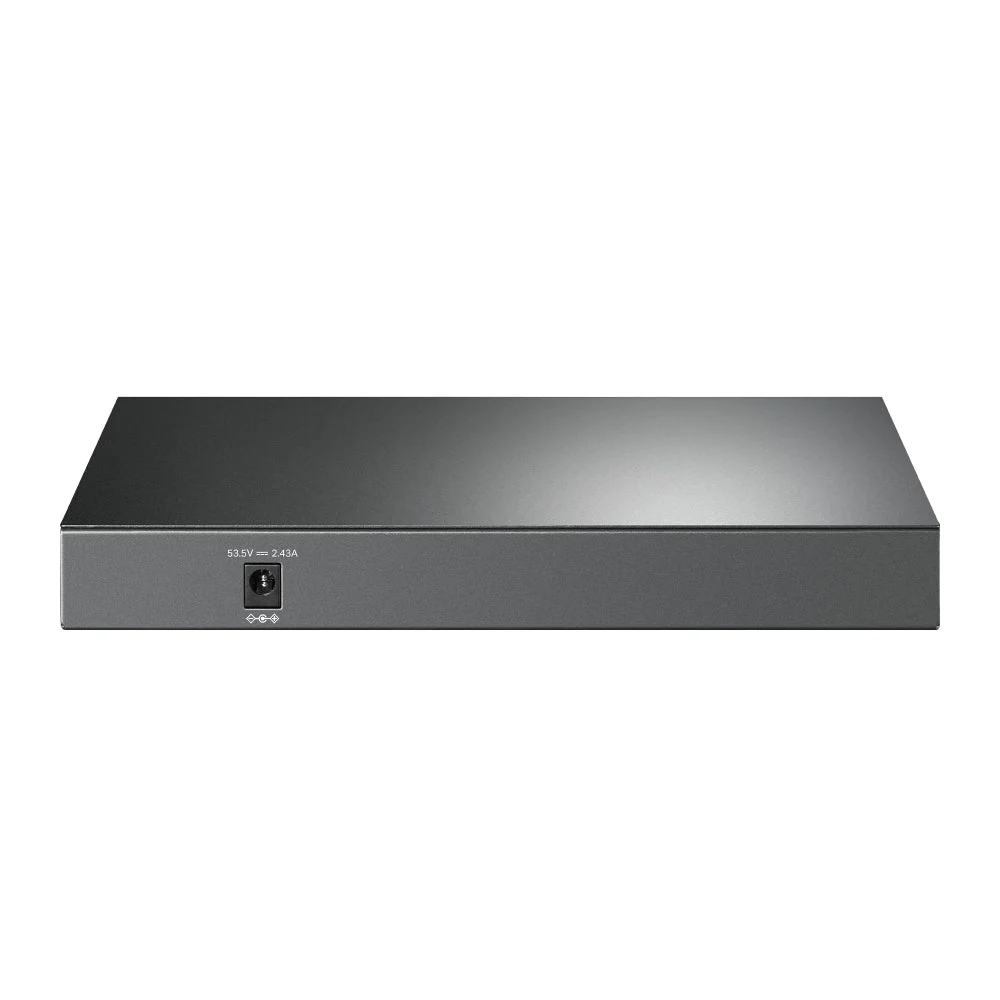

External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Max Power Consumption 7.57 W (220/50 Hz. no PD connected), 143.37 W (220/50 Hz. with 123 W PD connected)
Dimensions ( W x D x H ) 209 Ă— 126 Ă— 26 mm
$45.25

Original: $129.29

-65%
TP-Link (TL-SG105PP-M2) 5-Port 2.5G Desktop Switch with 4-Port PoE++ - 25 Gbps / LAN—

$129.29

$45.25

Product Information

Shipping & Returns

Description

This Switch Delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.

Introducing the TP-Link TL-SG105PP-M2, a game-changing 5-Port 2.5G Desktop Switch that's engineered to elevate your network's performance and efficiency. With five versatile ports offering 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps speeds, this switch delivers high-speed and reliable connections for all your devices.

What sets the TL-SG105PP-M2 apart is its Power over Ethernet (PoE) prowess. Boasting four PoE++ ports, this switch effortlessly transfers both data and power through a single cable. It's fully compatible with IEEE 802.3af/at/bt type3 compliant PDs, making it an excellent choice for a wide range of devices, from IP cameras to access points.

Key Features

  • 5Ă— 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • With four PoE++ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt type3 compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 60 W for each PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports*
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play, no configuration and installation required

Specifications

Brand TP-Link
Model TL-SG105PP-M2
Device Type Desktop Switch
Interface 5Ă— 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
PoE Ports (RJ45) Standard: 802.3 af/at/bt type3 compliant, PoE++ Ports: Ports 1–4, Power Supply: 123 W
Network Media 10BASE-T: UTP category 3, 4,  Cable, 100BASE-TX: UTP category 5, 5e Cable, 1000BASE-T: UTP category 5, 5e, 6 or Above Cable
Switching Capacity 25Gbps
Packet Forwarding Rate 18.6 Mpps
Mac Address Table 4K
Advanced Features Compatible With IEEE 802.3af/at/bt type3 Compliant PDs, Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping, PoE Auto Recovery (Ports 1-4)
Transfer Method Store-and-Forward
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Max Power Consumption 7.57 W (220/50 Hz. no PD connected), 143.37 W (220/50 Hz. with 123 W PD connected)
Dimensions ( W x D x H ) 209 Ă— 126 Ă— 26 mm
