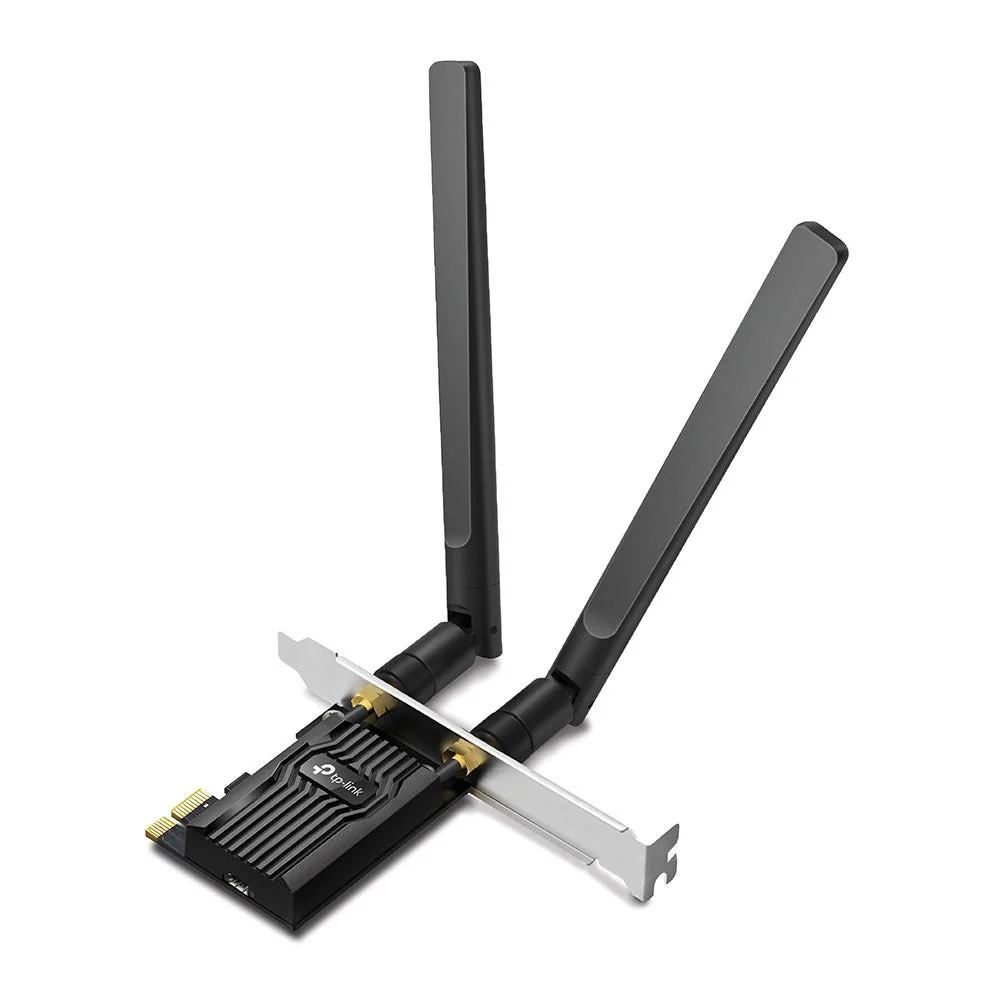

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
With the TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter, you can enjoy lightning-fast internet speeds and a reliable, seamless connection. Upgrade your device and experience up to 2.7x faster speeds, 75% lower latency, and increased capacity. Perfect for streaming, gaming, and staying connected with multiple devices at once.
Key Features
-
Item ID : NS027130
-
Brand : TP-Link
-
Color : Black
Specifications
|
Model No |
TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter |
|
Part No |
Archer TX20E |
|
Color |
Black |
|
Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 |
|
WiFi Speeds |
AXE5400 6 GHz: 2402 Mbps (802.11ax, HE160) 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
|
WLAN Signal Rate |
5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
|
WLAN Reception Sensitivity |
5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm |
|
WLAN Transmit Power |
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) |
|
WLAN Modes |
Infrastructure mode |
|
Buttons |
Reset Button |
|
Wireless Security |
Support 64/128 bit WEP WPA/WAP2/WPA3 WPA-PSK/WPA2-PSK 802.1x |
|
Modulation Technology |
DBPSK DQPSK CCK OFDM 16-QAM 64-QAM 256-QAM 1024QAM |
|
Dimension |
4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) |
|
Package Content |

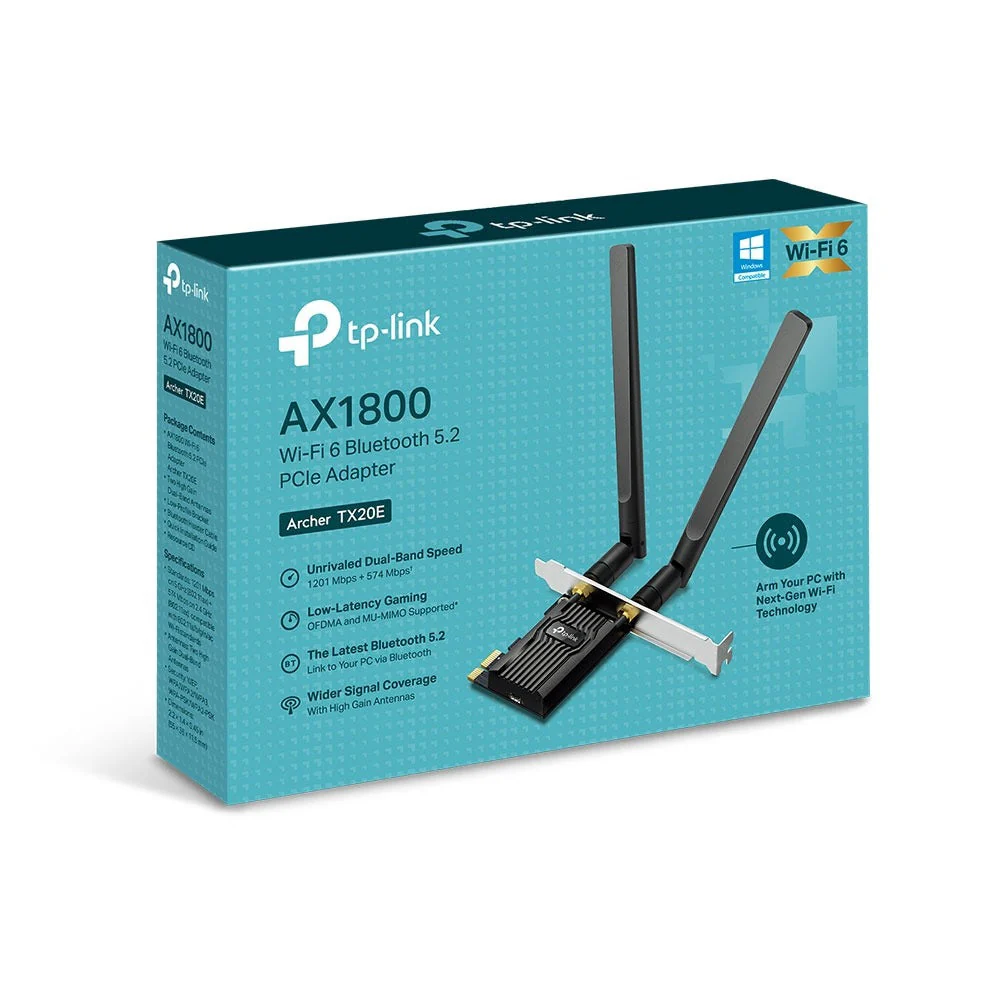

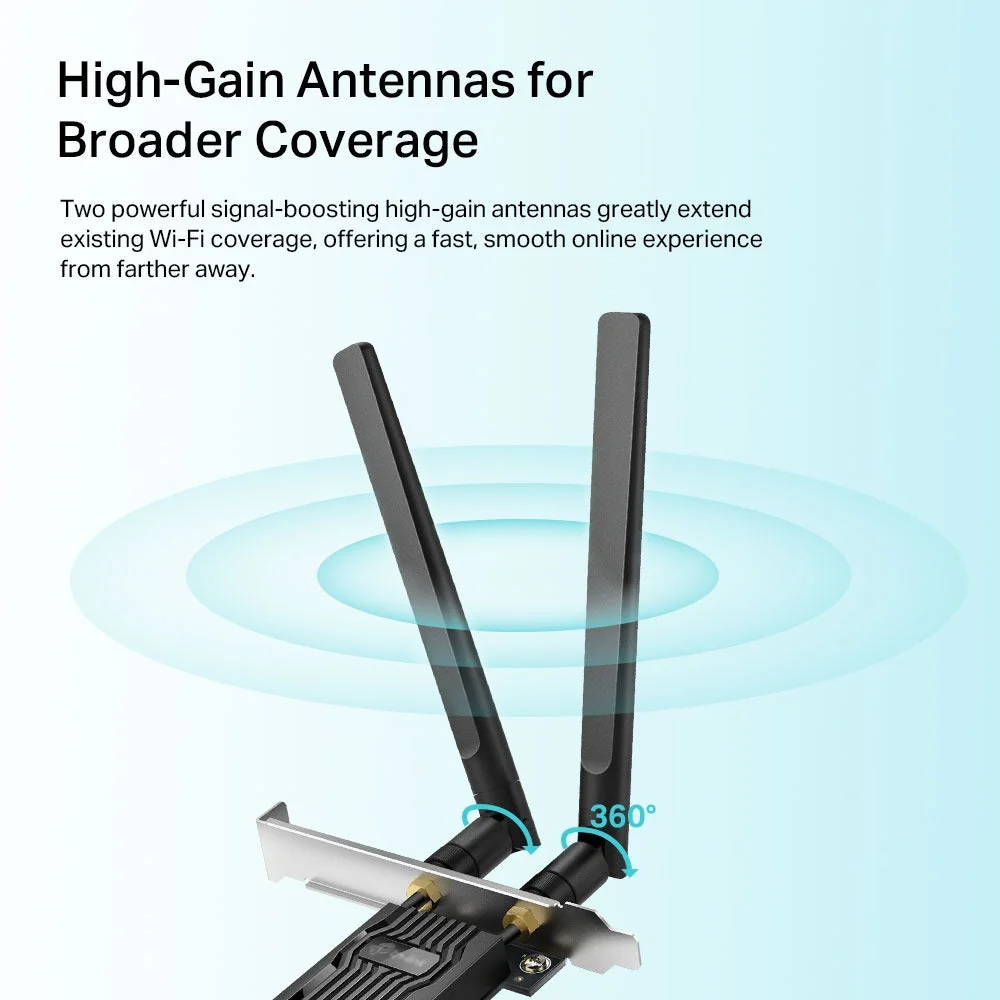

Archer TX20E Two High-Gain Dual Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
|
Warranty |
1 Year ( As per Manufacturer Policy ) |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
With the TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter, you can enjoy lightning-fast internet speeds and a reliable, seamless connection. Upgrade your device and experience up to 2.7x faster speeds, 75% lower latency, and increased capacity. Perfect for streaming, gaming, and staying connected with multiple devices at once.
Key Features
-
Item ID : NS027130
-
Brand : TP-Link
-
Color : Black
Specifications
|
Model No |
TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter |
|
Part No |
Archer TX20E |
|
Color |
Black |
|
Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 |
|
WiFi Speeds |
AXE5400 6 GHz: 2402 Mbps (802.11ax, HE160) 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
|
WLAN Signal Rate |
5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
|
WLAN Reception Sensitivity |
5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm |
|
WLAN Transmit Power |
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) |
|
WLAN Modes |
Infrastructure mode |
|
Buttons |
Reset Button |
|
Wireless Security |
Support 64/128 bit WEP WPA/WAP2/WPA3 WPA-PSK/WPA2-PSK 802.1x |
|
Modulation Technology |
DBPSK DQPSK CCK OFDM 16-QAM 64-QAM 256-QAM 1024QAM |
|
Dimension |
4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) |
|
Package Content |
Archer TX20E Two High-Gain Dual Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
|
Warranty |
1 Year ( As per Manufacturer Policy ) |
