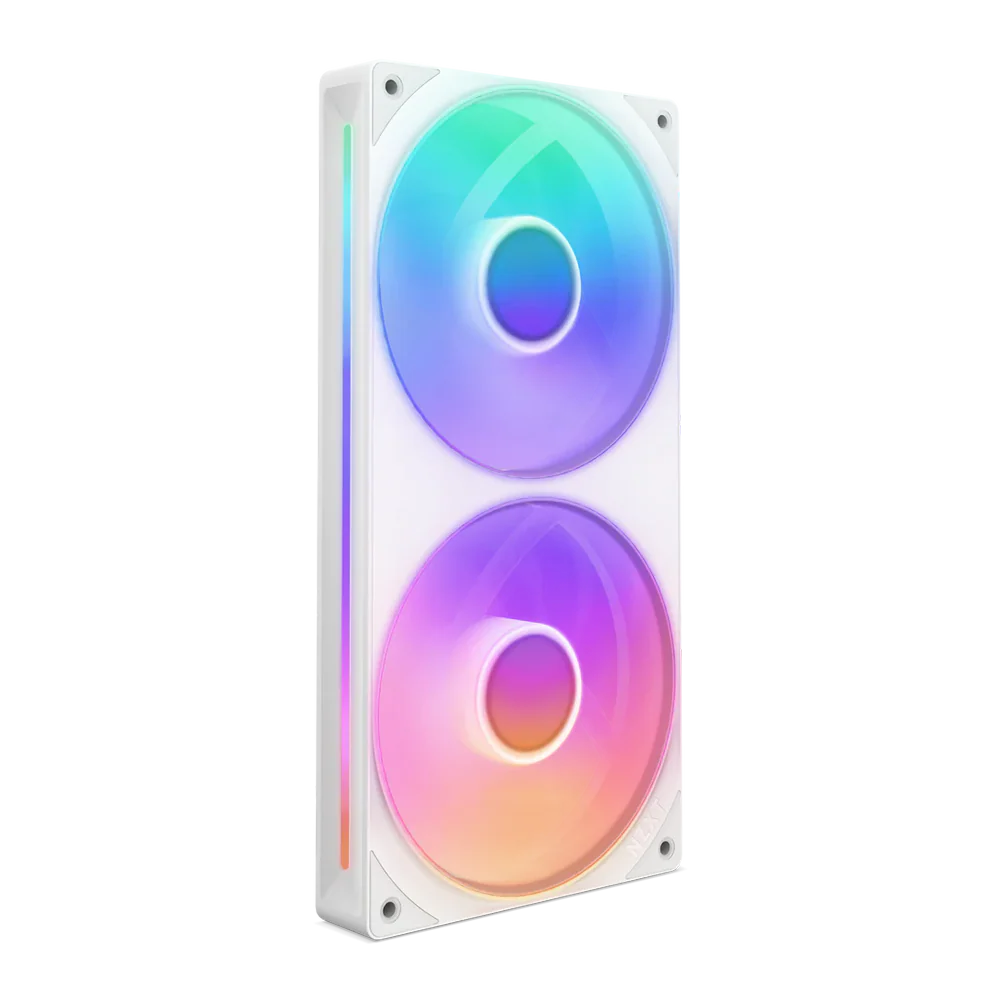

Nzxt F240 Rgb Core Fan Single Frame White
The NZXT F240 RGB Core represents a refined approach to case cooling, engineered for builders who demand both performance and aesthetic cohesion. This single-frame fan delivers efficient airflow management through optimized blade geometry, while its integrated RGB lighting synchronizes seamlessly with compatible NZXT ecosystems for unified system aesthetics. The white finish complements modern builds with clean, minimalist appeal. Designed for reliability in demanding environments, the F240 RGB Core provides the thermal management foundation serious enthusiasts require without unnecessary complexity.
| Model No | NZXT F240 RGB Core 240MM Single-Frame RGB Fan Unit - White |
| Part No | RF-U24HF-W1 |
| Color | White |
| Lighting | 8 LEDs per Fan |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Speed | 500 - 2,400 ± 250 RPM per fan |
| Sound Level | 30.00 dBA per fan |
| Power Consumption | 12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W |
| Static Pressure | 3.3 mm H₂O per fan |
| Fan Airflow | 75.12 CFM per fan |
| Fan Connector | 8-pin for PWM & RGB |
| Material | Plastic, Rubber, PCB |
| Cable Length | 1 x 600 mm |
| MTBF | 60,000 Hours |
| Special Features | Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans. Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable. Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust. Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan. Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals. PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise. Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed. Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately). |
| Dimension | Height:240 mm Width:120 mm Depth:26 mm |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The NZXT F240 RGB Core represents a refined approach to case cooling, engineered for builders who demand both performance and aesthetic cohesion. This single-frame fan delivers efficient airflow management through optimized blade geometry, while its integrated RGB lighting synchronizes seamlessly with compatible NZXT ecosystems for unified system aesthetics. The white finish complements modern builds with clean, minimalist appeal. Designed for reliability in demanding environments, the F240 RGB Core provides the thermal management foundation serious enthusiasts require without unnecessary complexity.
| Model No | NZXT F240 RGB Core 240MM Single-Frame RGB Fan Unit - White |
| Part No | RF-U24HF-W1 |
| Color | White |
| Lighting | 8 LEDs per Fan |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Speed | 500 - 2,400 ± 250 RPM per fan |
| Sound Level | 30.00 dBA per fan |
| Power Consumption | 12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W |
| Static Pressure | 3.3 mm H₂O per fan |
| Fan Airflow | 75.12 CFM per fan |
| Fan Connector | 8-pin for PWM & RGB |
| Material | Plastic, Rubber, PCB |
| Cable Length | 1 x 600 mm |
| MTBF | 60,000 Hours |
| Special Features | Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans. Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable. Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust. Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan. Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals. PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise. Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed. Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately). |
| Dimension | Height:240 mm Width:120 mm Depth:26 mm |
