Hybrid Frame Design

Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.

Larger Fan Blades

Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.

Improved Cooling Performance

Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.

MULTIPLE SIZE AND COLOR OPTIONS

Available in both 120mm and 140mm sizes, as well as in black and white color options.

Specifications

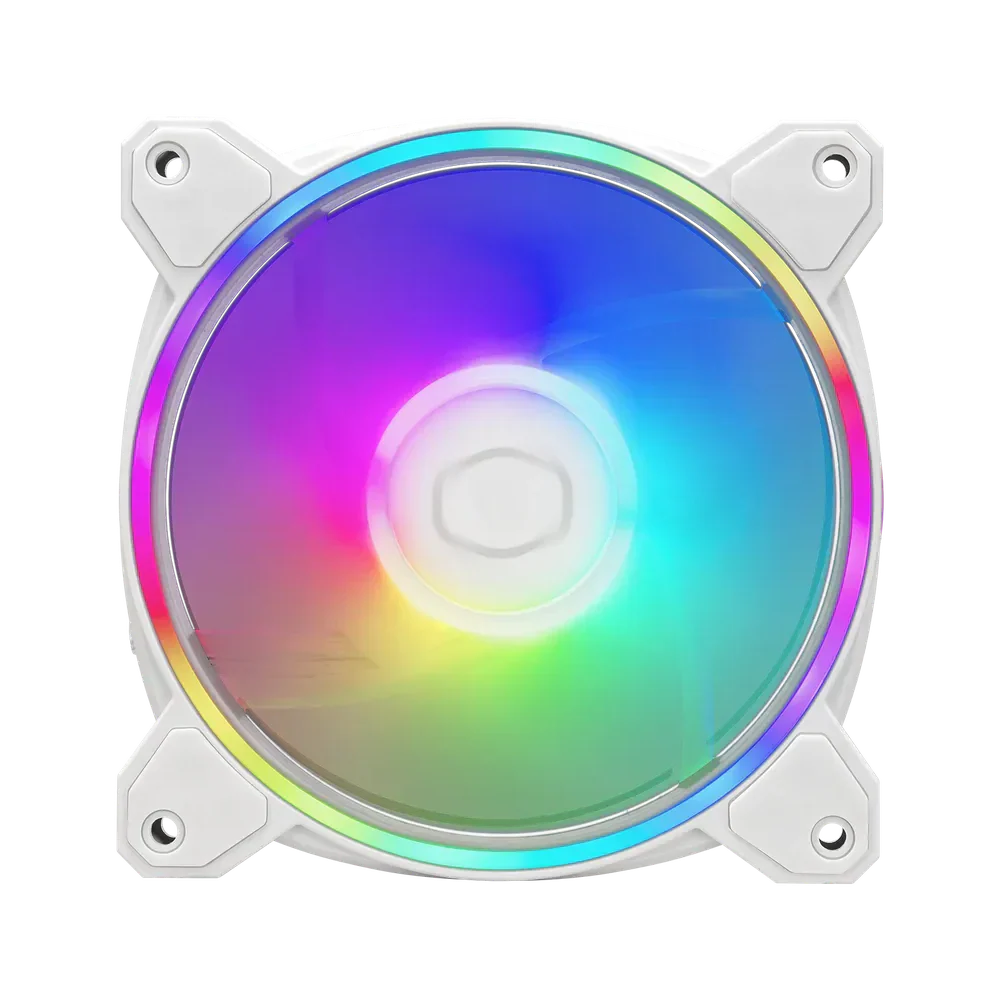

• Product Number : MFL-B2DW-21NP2-R2

• Exterior Color  : White

• Fan Dimensions (L x W x H)  : 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch

• Fan Profiles  : Addressable Gen 2 RGB

• Number of LEDs  : 24pcs

• Fan Speed  : 0-2050 RPM ± 5%

• Fan Airflow  : 51.88 CFM

• Fan Noise Level  : 27 dBA

• Fan Bearing Type  : Rifle Bearing

• Fan Pressure  : 2.77 mmH₂O

• Fan MTTF  : >160,000 Hours

• Fan Power Connector  : 4-Pin (PWM)

• Fan Rated Voltage  : 12 VDC

• Fan Rated Current  : 0.14A

• Fan Safety Current  : 0.37A

• Fan Power Consumption  : 1.68W

• RGB Connector  : 3-Pin ARGB

• RGB Rated Voltage  : 5 VDC

• RGB Rated Current  : 0.77A

• Fan Weight  : 174g / 0.38 lbs

• Series  : MasterFan

• Cooler Type  : Case Fan

• Fan Size  : 120

• Fan - LED Lighting  : ARGB
