Details

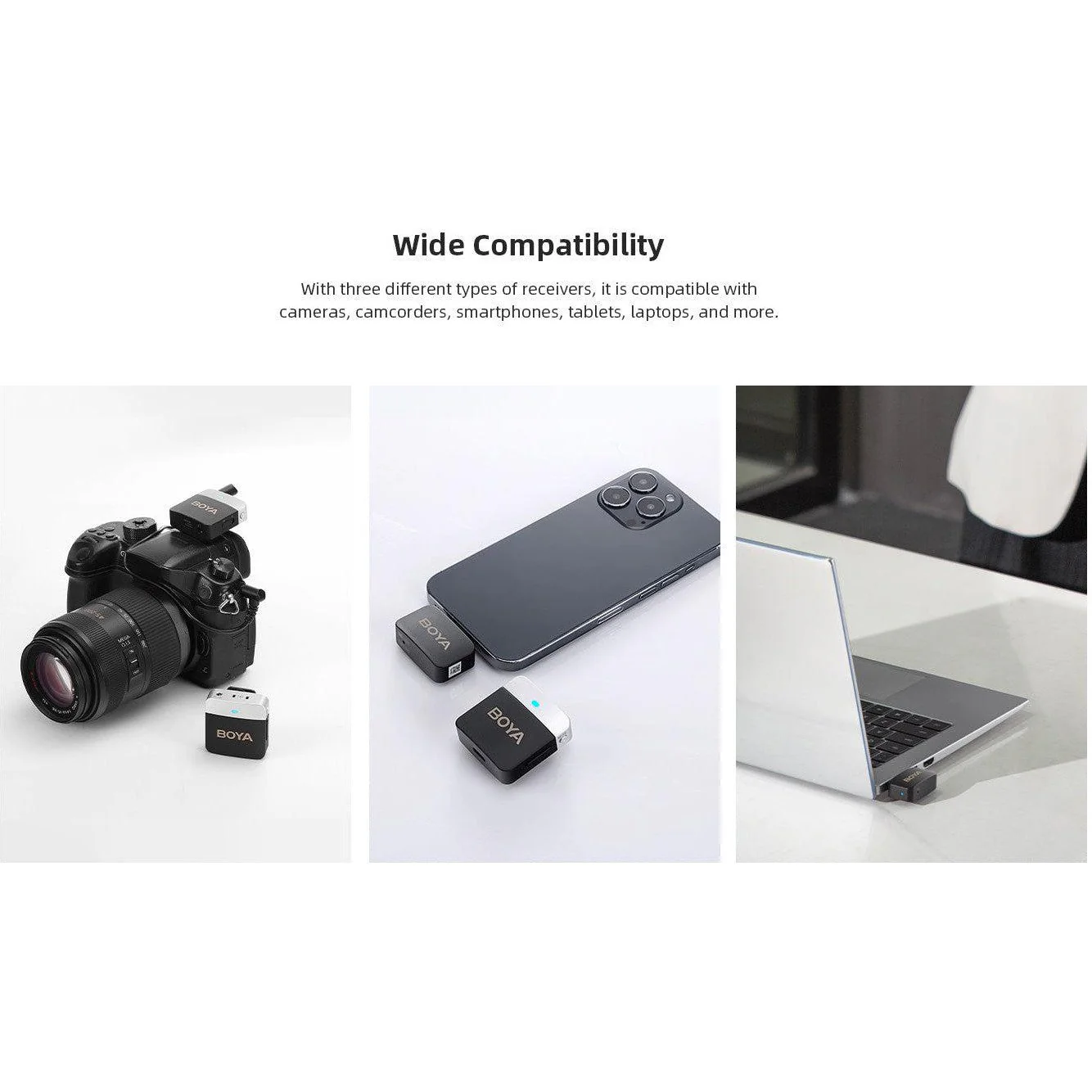

The BY-M1V series is a lightweight also user-friendly wireless microphone system that delivers exceptional sound quality to a range of devices including smartphones, tablets, DSLR cameras, or camcorders. It's perfect for live streaming, content creation, or mobile journalism. The BY-M1V3, featuring a RXU port, is designed for USB-C devices.

Specifications

• BY-M1V-TX
  Transmission Type: - 2.4GHz ISM

  Operating Range: - >60m (without obstacles)

  Audio Input: - 3.5mm Jack or Built-in Omnidirectional Mic

  Frequency Response: - 50Hz-20kHz

  Signal-to-Noise Ratio: - >75dB

  Maximum SPL: - Built-in Microphone: 120dB SPL

  Sensitivity: - Built-in Microphone:-39dB±2dB (0dB=1V/Pa@1kHz)

  Noise Cancellation: - Yes

  Power Requirement: - Built-in Li-ion Battery or USB-C DC 5V

  Antenna: - PIFA Antenna

  Battery Life: - Approx.6 hours

  Weight: - 18g

  Dimensions: - 40.2×39.4×18.6mm

  Operating Temperature: - 0℃ to 50℃

  Storage Temperature: - -20℃ to 55℃

• BY-M1V-RXU

  Transmission Type: - 2.4GHz ISM

  Modulation: - GFSK

  Operating Range: - >60m (without obstacles)

  Audio Output: - USB-C Connector

  Power Requirement: - Supplied by USB-C Devices

  Antenna: - PIFA Antenna

  Weight: - 10g

  Dimensions: - 23.5×38×11.9mm

  Operating Temperature: - 0℃ to 50℃

  Storage Temperature: - -20℃ to 55℃
